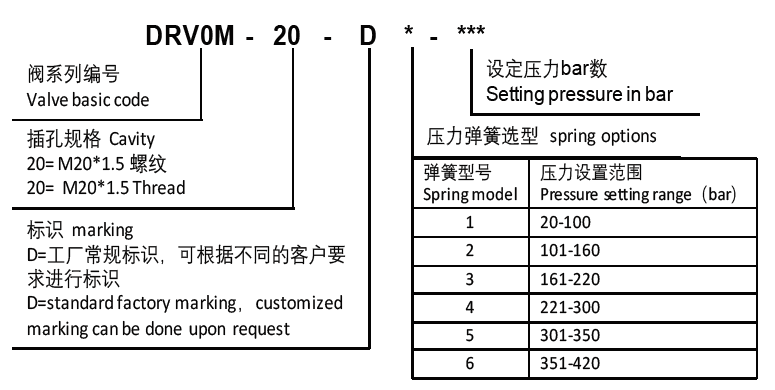

DRV0M-20

75L/min

420bar

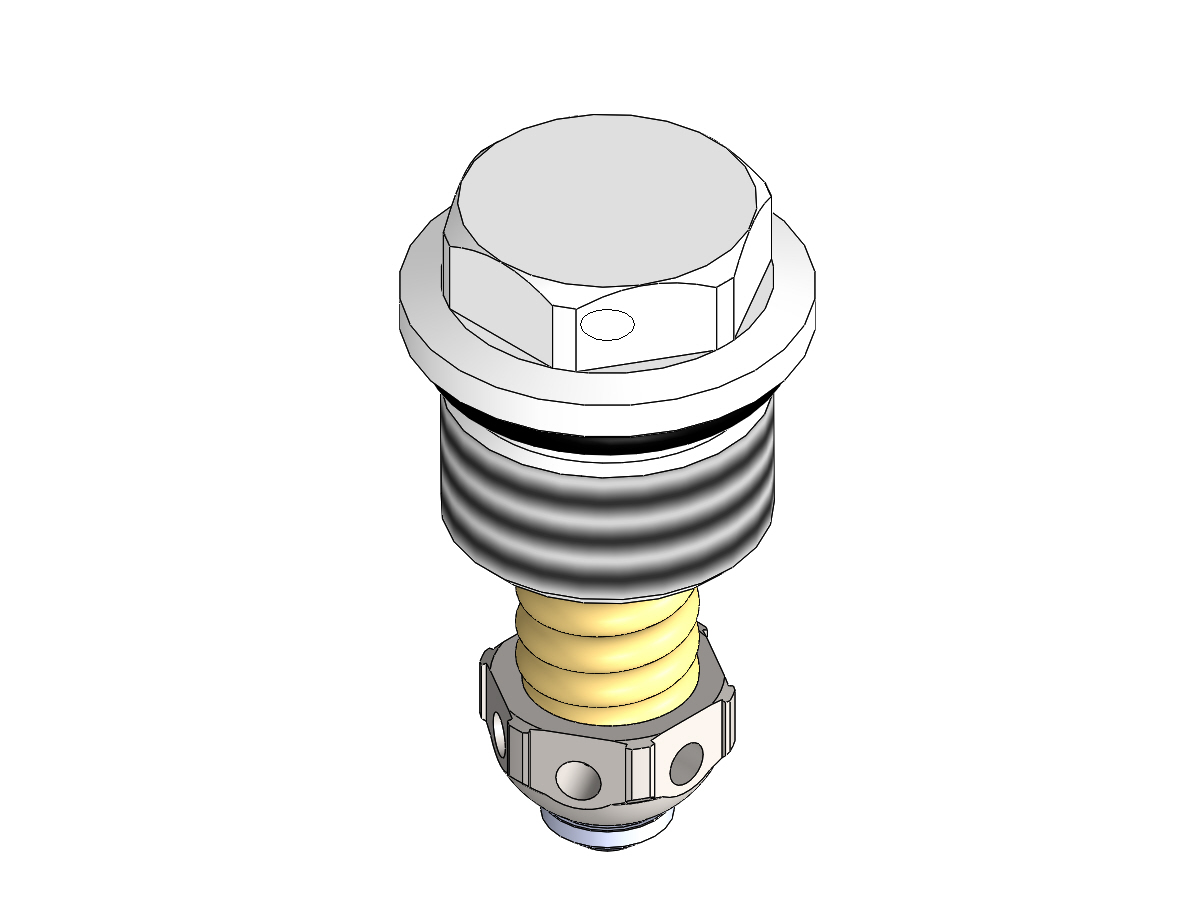

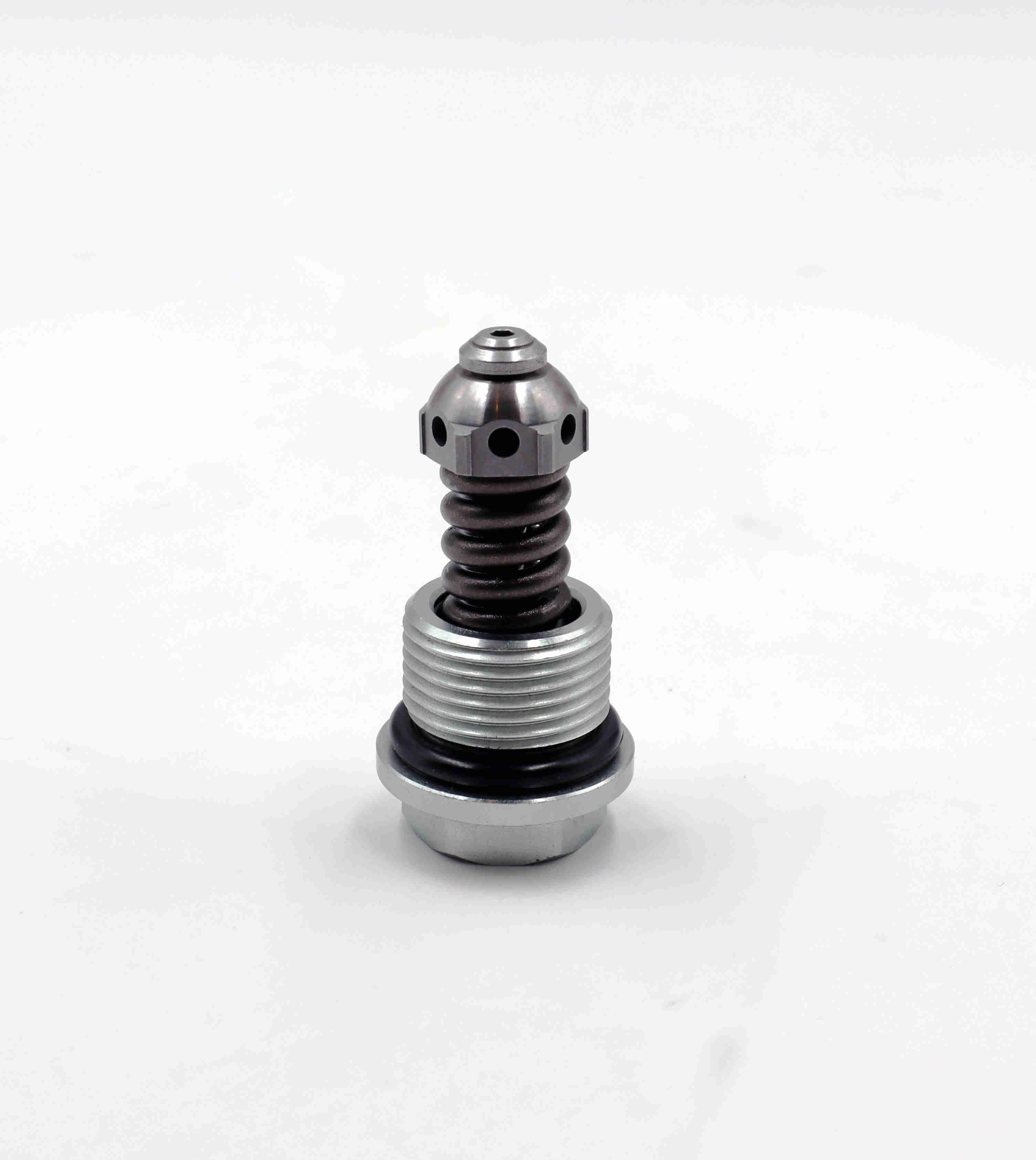

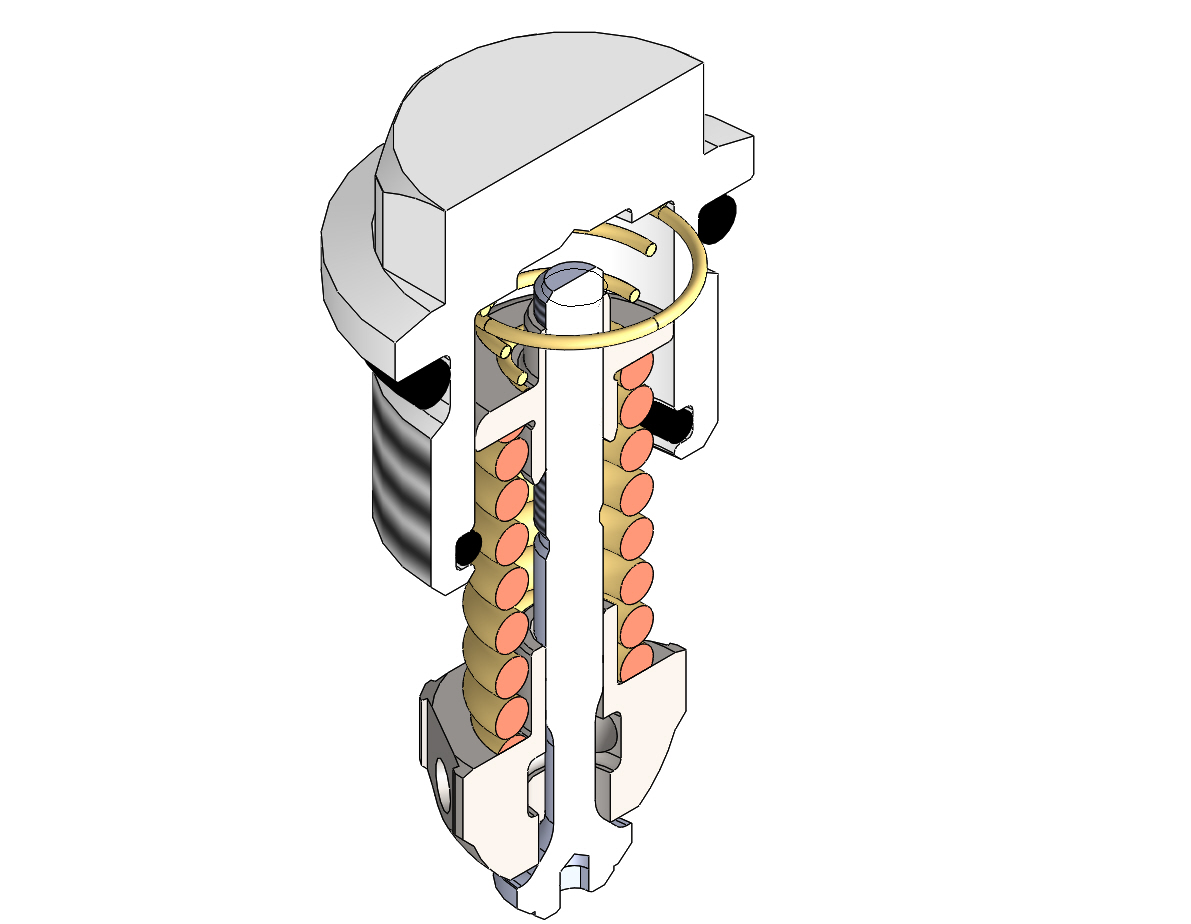

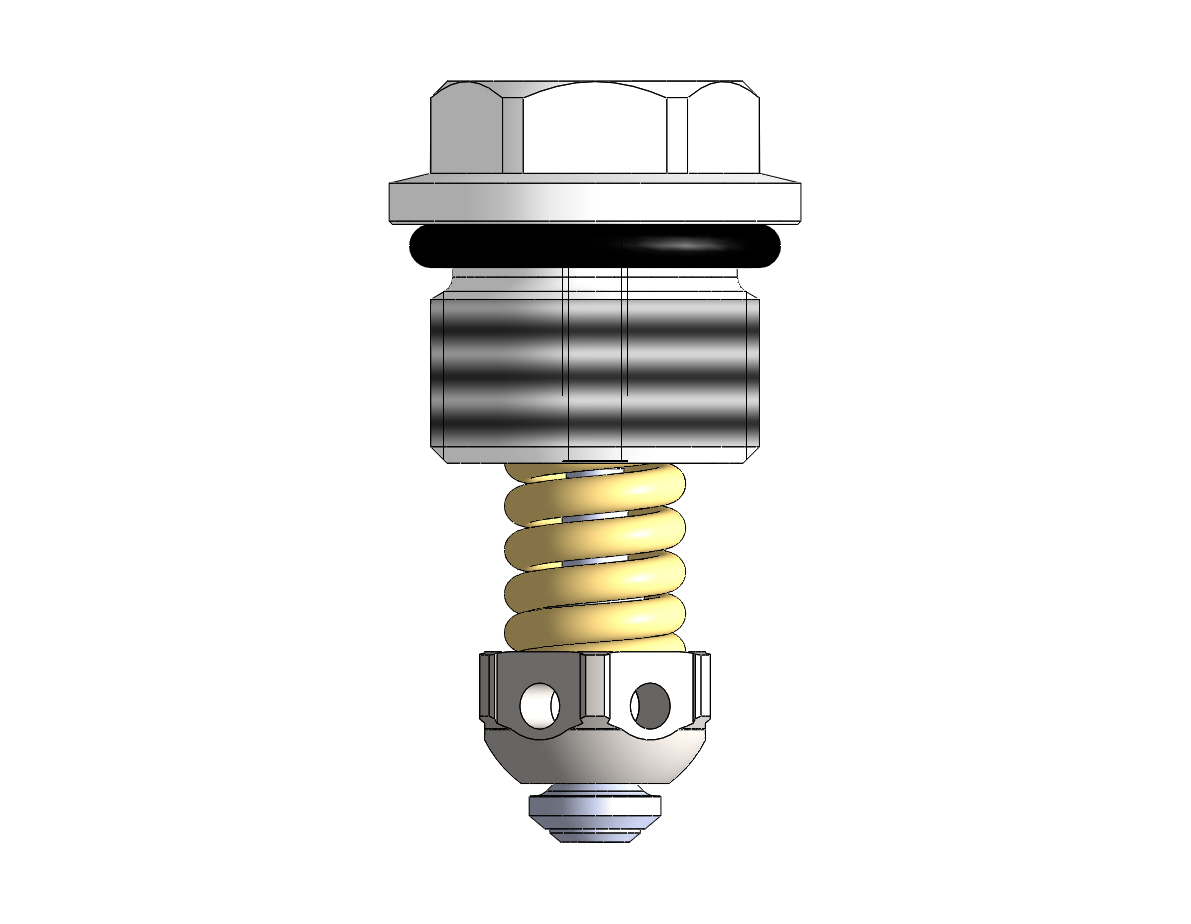

該閥在緊湊式螺紋插裝閥結合了減震閥和通過止回閥實現補油的典型功能。在壓力下的泄壓功能，它是通過一個側入式鼻排氣閥完成的，由于智能導流板設計實現非常低的壓力上升。當壓力在高壓端口（1）達到閥門設定，閥門啟動打開通往油箱端口（2）。在自由反向液流中 一個非常輕的偏置彈簧允許液流易于從鼻端流通到側端（2 到1）。高精度加工保證快速響應負載變化，有限遲滯和減少內部和外部泄漏。 The valve combines in one compact insert cartridge the typical function of shock relief valve and anti-cavitation through the check valve. In the pressure relief function it’s a side-in nose-exhaust valve, with very low pressure rise thanks to the smart deflector design. When the pressure at the high pressure inlet(1) reaches the valve setting, the valve starts to open to tank (2). In the free reverse flow function a very light bias spring allows for ease of flow passage from nose to side (2 to 1). High precision machining guarantees quick response to load changes, limited hysteresis and reduced internal and external leakage.
