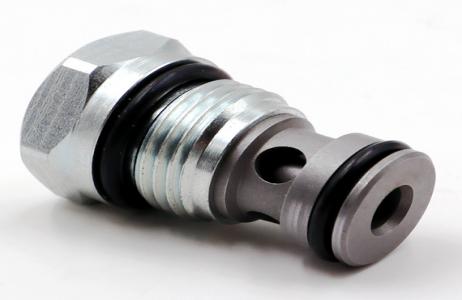

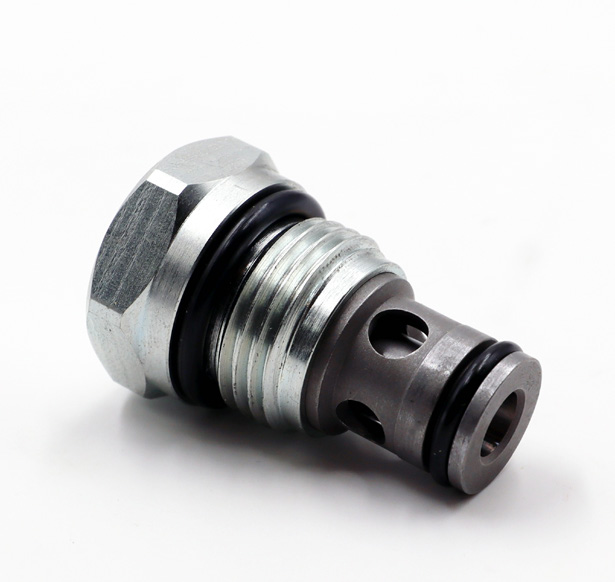

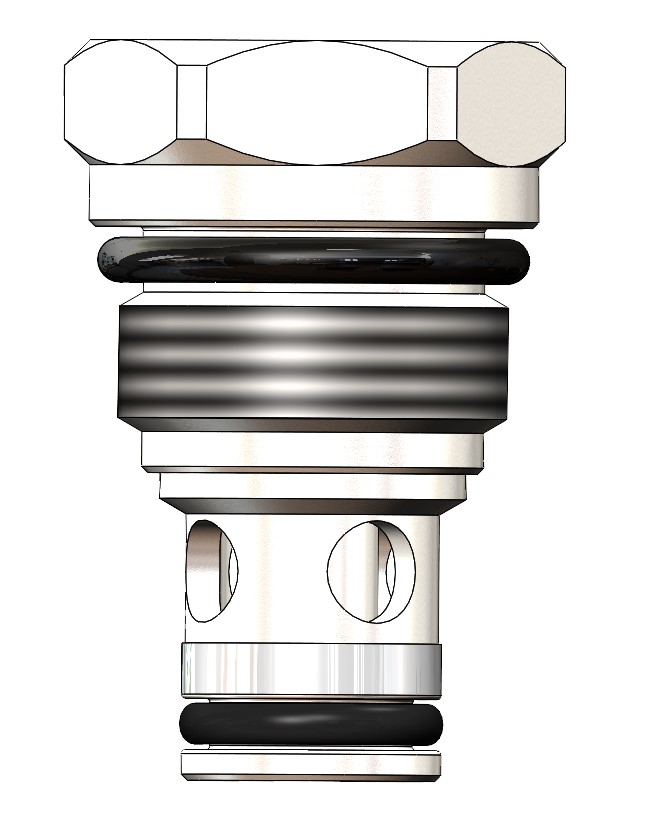

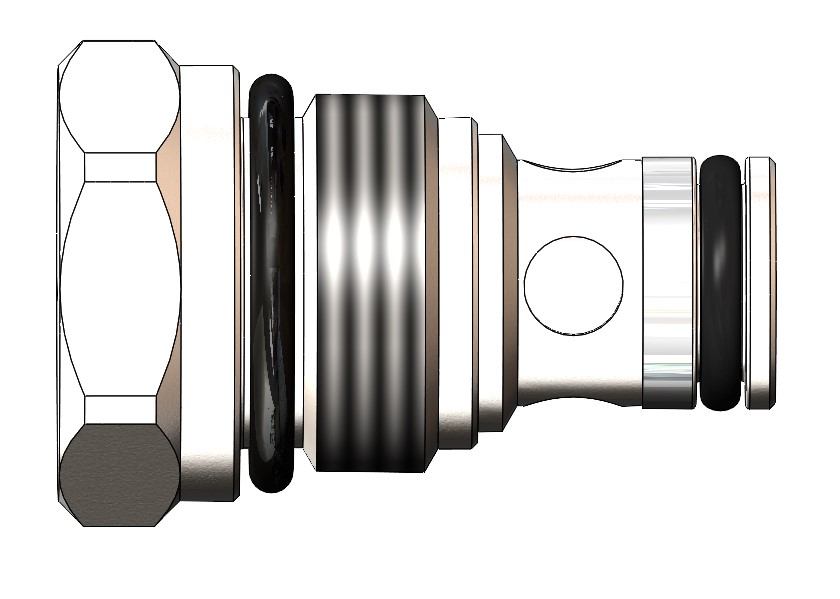

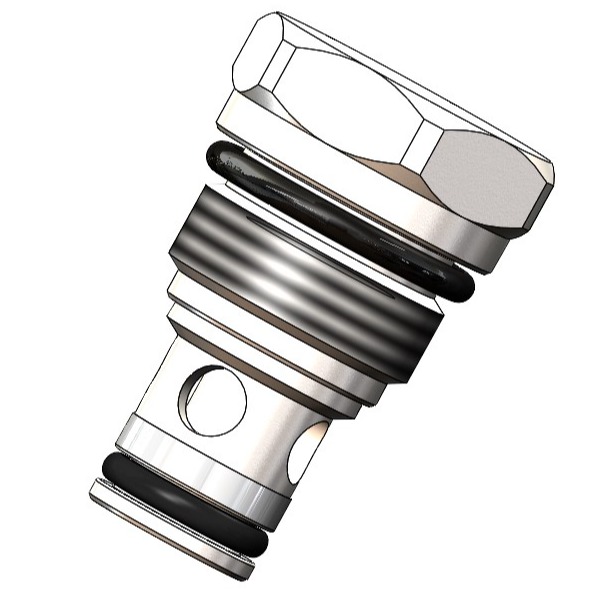

單向閥CV01S-08系列
產品優勢
錐閥經過熱處理硬化并經過精密加工，保證更低的內泄漏及更長的使用壽命。外部零件外表面都是經過鍍鋅處理和防腐蝕處理。所有零部件均采用高強度鋼材制造。結構緊湊、體積小、采用通用標準插孔。
Poppet is hardened and ground to guarantee minimal wear and to extend service life. Allexternal surfaces are zinc plated and corrosion-proof. All valve parts are made of highstrength steel. Compact size. Industry common cavity.
詳細參數
最大工作壓力 Maximum operating pressure | 420 bar |
最大流量 Maximum flow | 50l/min |
開啟壓力 Cracking pressure | 查看訂貨選型表See table in Ordering code |
最大內泄漏量 Maximum internal leakage | 0,10 cm3 / min @ 10 bar0,10 cm3 / min @ 420 bar |
外露零件表面處理要求External component treatment | Zn/Fe - standard Zn/Ni |
安裝方向 Orientation | 無限制 No restrictions |
安裝力矩 Installation torque | 40-45 Nm, Hex.22 |
測試技術規范 Technical specification for characterization | 見尾頁1-2see the last page 1-2 |
重量 Weight | 0.063 kg |
適用油溫范圍 Oil Temperature Range | -30° C to 110° C |
適用工作介質 Fluids | 礦物油或具有潤滑性的合成油液 Mineral- based or synthetics with lubricatingproperties |
工作介質粘度范圍 Viscosities | 7,4 to 420 cSt |
測試液壓油型號 Oil testing condition | ISO VG 46 cSt |
過濾要求 Filtration | 20/18/15 ISO 4406 (maximum filtrationadmitted) |

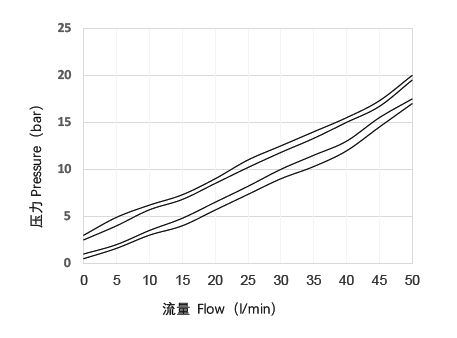

特性曲線
注：性能圖說明了流量處理能力。P/Q 曲線是在Toil=40° C 和 46 cSt 下記錄。
Note: The performance chart illustrates flow handling capacity. P/Q curves are recorded at Toil=40° Cand 46 cSt.

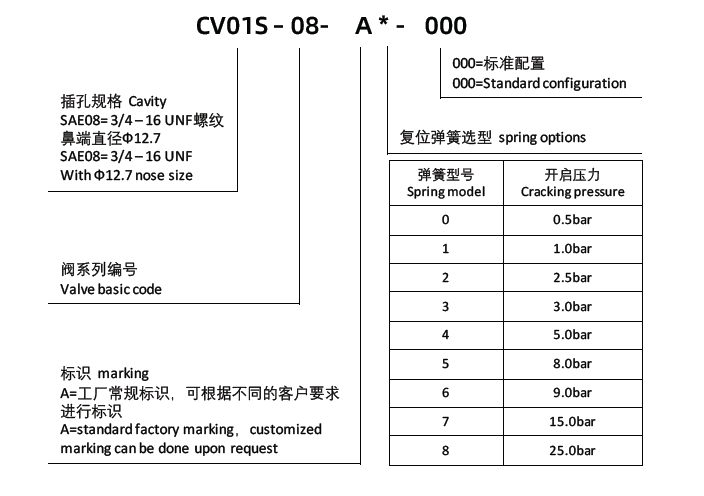

訂貨編號
