SV10-4X Series

HomeProduct Center

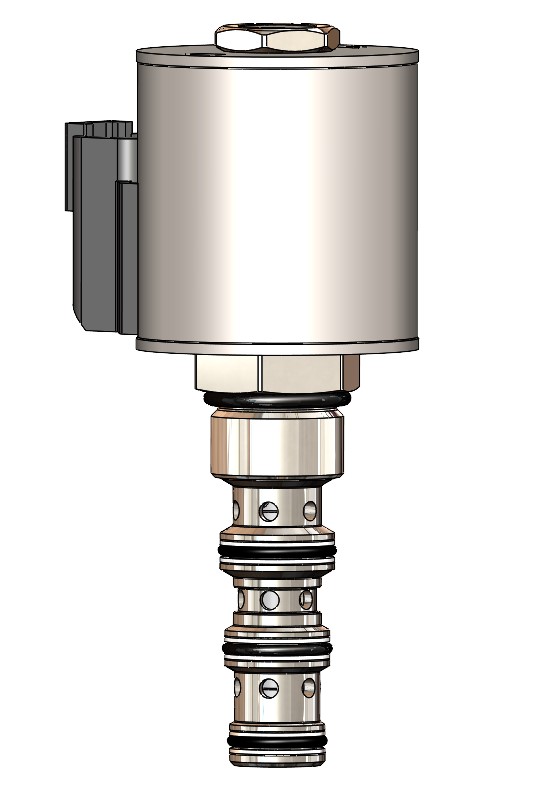

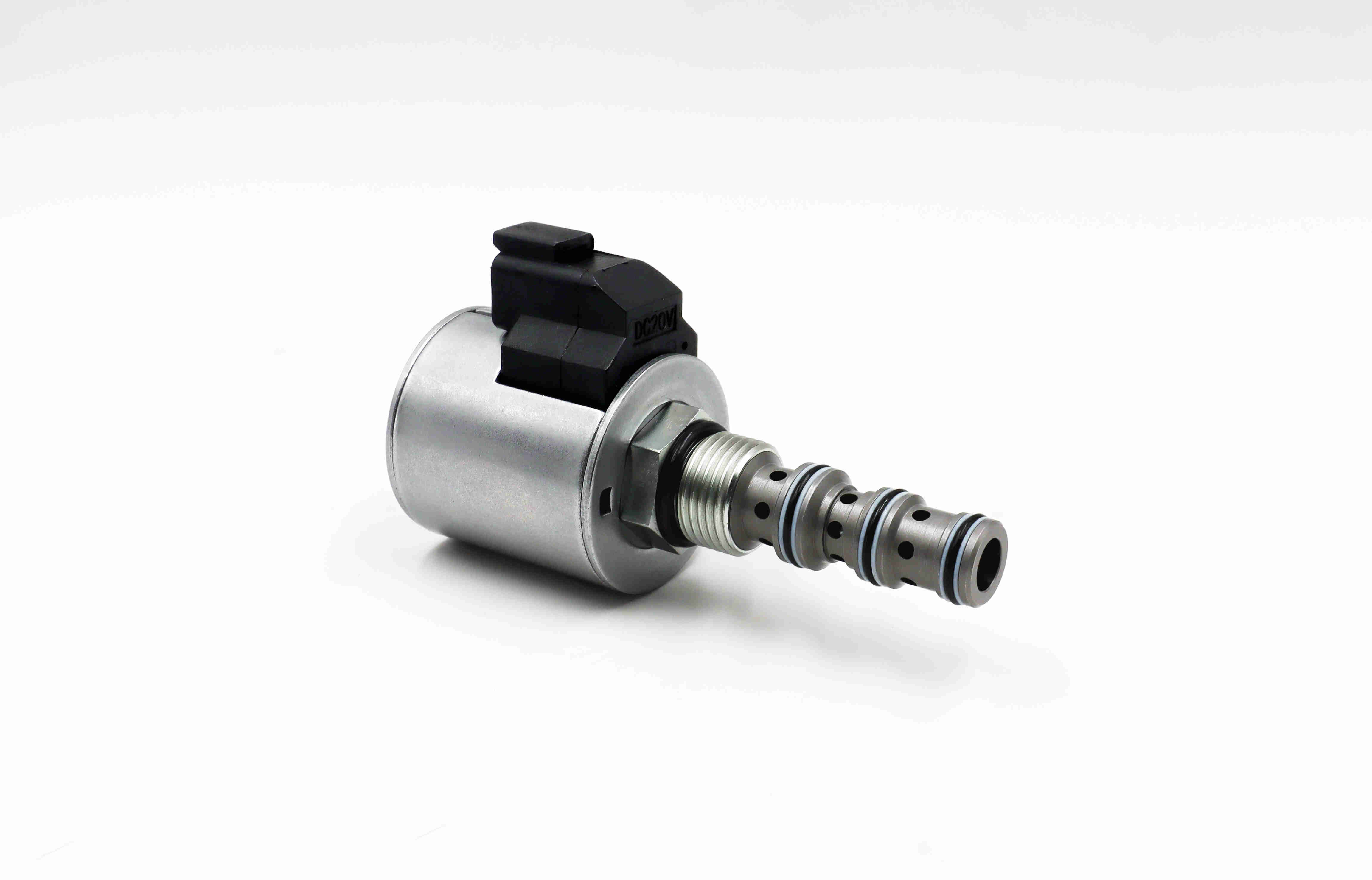

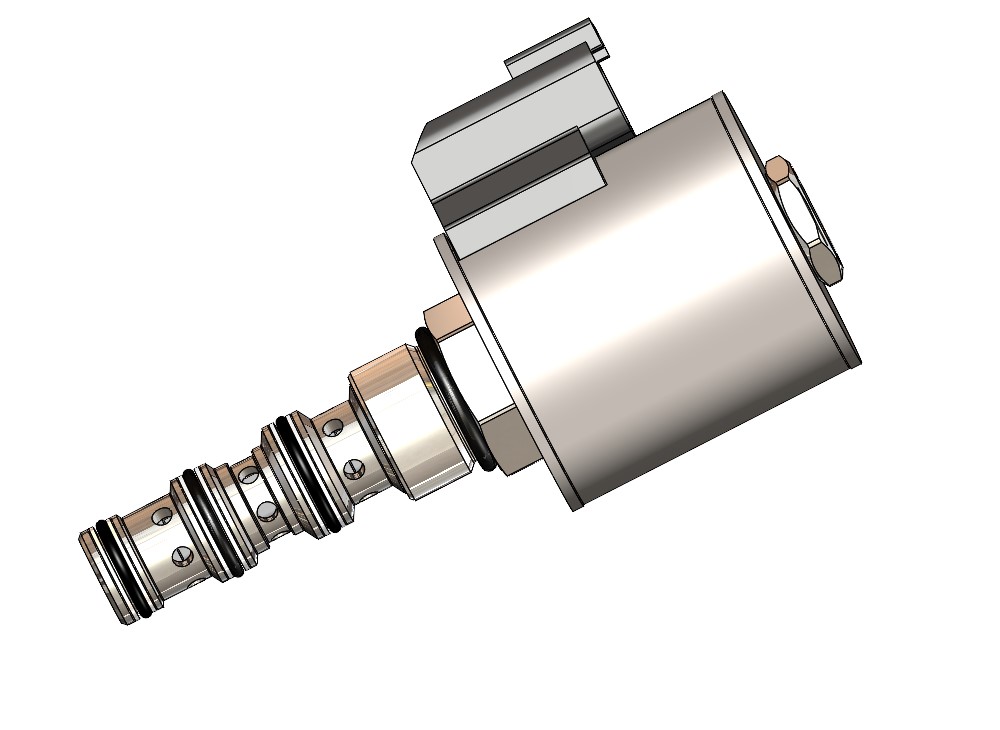

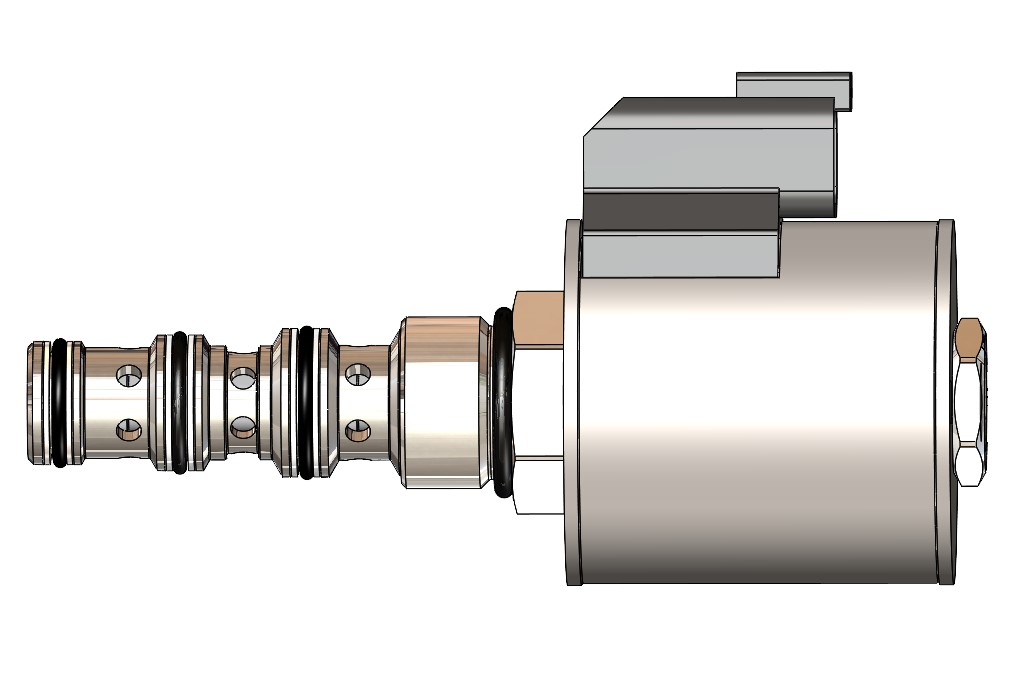

Name：

Solenoid directional Valves

Model：

SV10-4X Series

Schematics：

Flow：

23L/min

Pressure：

276bar

Description：

SV10-4X: 二位四通電磁換向滑閥
4-Way,2-Position Solenoid-Operated Directional Spool Valve
直動滑閥式螺紋插裝電磁換向閥.
A Cartridge-style Direct-acting Spool-type Solenoid Directional Valve

Download Contact Us

Product Advantages

· 滑閥經過熱處理硬化并經過精密加工，保證更低的內泄漏及更長的使用壽命。外部零件外表面都是經過鍍鋅鎳處理和防腐蝕處理。所有零部件均采用高強度鋼材制造。結構緊湊、體積小。

· 額定電磁線圈適合連續工作。

· 可選線圈電壓、插頭。

· 可以對所有油口完全加壓。

· 插件電壓可互換。

· 可選IP69K 防水E 型線圈。

· 工業通用閥孔。

· Poppet is hardened and ground to guarantee minimal wear and to extend service life.All external surfaces are zinc plated and corrosion-proof. All valve parts are made of highstrength steel. Compact size.

· Continuous-duty rated coil.

· Optional coil voltages and terminations.

· All ports may be fully pressurized.

· Unitized, molded coil design.

· Optional waterproof E-Coils

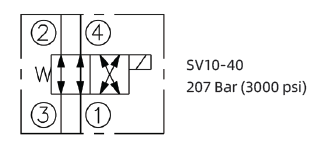

Schematics


Detailed parameters

工作壓力Pressure rating	207bar
最大工作壓力 Maximum operating pressure	276 bar
最大流量 Maximum flow	23L/min
最大內泄漏量 Maximum internal leakage	82 cc /min @207bar工作壓力 82 cc /min @ 207bar pressure rating
線圈額定負載Coil rated load	可在85%~115%的額定電壓范圍內連續工作Work continuously in the rated voltage range of85%-115%
最小吸合電壓Minimum operate voltage	207bar時為額定值的85%85% of rated value at 207bar
20°C時的線圈初始電流Coil initial current at 20°C	E型線圈：12VDC時為1.7A;24VDC時為0.85AE-coil: 1.7A at 12VDC; 0.85A at 24VDC
外露零件表面處理要求External component treatment	Zn/Fe - standard Zn/Ni
安裝方向 Orientation	無限制 No restrictions
重量 Weight	0.18kg
適用油溫范圍 Oil Temperature Range	-40°C to 100°C
適用工作介質 Fluids	礦物油或具有潤滑性的合成油液 Mineral - based orsynthetics with lubricating properties
工作介質粘度范圍Viscosities	7,4 to 420 cSt
測試液壓油型號 Oil testing condition	ISO VG 46 cSt
過濾要求 Filtration	20/18/15 ISO 4406 (maximum filtration admitted)
插孔 Cavity	VC10-4
